A practical guide for platform teams managing shared AI deployments

Rate Limiting vs. Quota Reservations: when to use each

You have a single gpt-oss-20b deployment. Six teams want to use it. Marketing is running batch summarization jobs at 3am. The fraud team needs sub-second responses 24/7. An intern’s Jupyter notebook is accidentally hammering the endpoint in a tight loop. And your GPU bill is already eye-watering.

Sound familiar? DataRobot gives you two tools to solve this: Rate Limiting and Quota Reservations. This post explains when to reach for each, backed by a real load test example on a staging deployment.

Rate Limits and Quota Reservations, in plain English

Rate Limits – Available in DataRobot v11.4

Rate limits sets per-consumer caps across multiple dimensions: requests per minute, token count per hour, concurrent requests, and input sequence length. A default policy applies to all consumers, with per-entity exceptions available for specific overrides.

What it protects against: Any single consumer overconsuming — whether through high request volume, large inputs, or excessive concurrency.

Quota Reservations – available in DataRobot v11.9

Quota reservations define the deployment’s total possible throughput (value per minute) and a utilization threshold that triggers enforcement. Within that budget, specific entities can be allocated a reserved percentage — guaranteeing them a minimum slice of capacity that other consumers can’t take away.

What it protects against: Priority starvation. Without reservations, a noisy neighbor can consume the entire capacity budget, leaving your critical workloads with nothing.

How Rate Limits and Quota Reservations work together (and apart)

Used alone, each tool solves a specific problem:

Rate limiting alone caps total throughput. Under saturation, all consumers compete equally — first come, first served.
Quota reservations alone guarantee minimum throughput for specific consumers, regardless of what others are doing.

Together, they give you both control surfaces: a ceiling that protects the model and guaranteed floors for the consumers that matter most.

Load testing a multi-tenant deployment

To evaluate these features under pressure, we load-tested a gpt-oss-20b deployment in our staging environment. The setup simulates a real multi-tenant scenario: four consumers sharing one model, each with different priority levels.

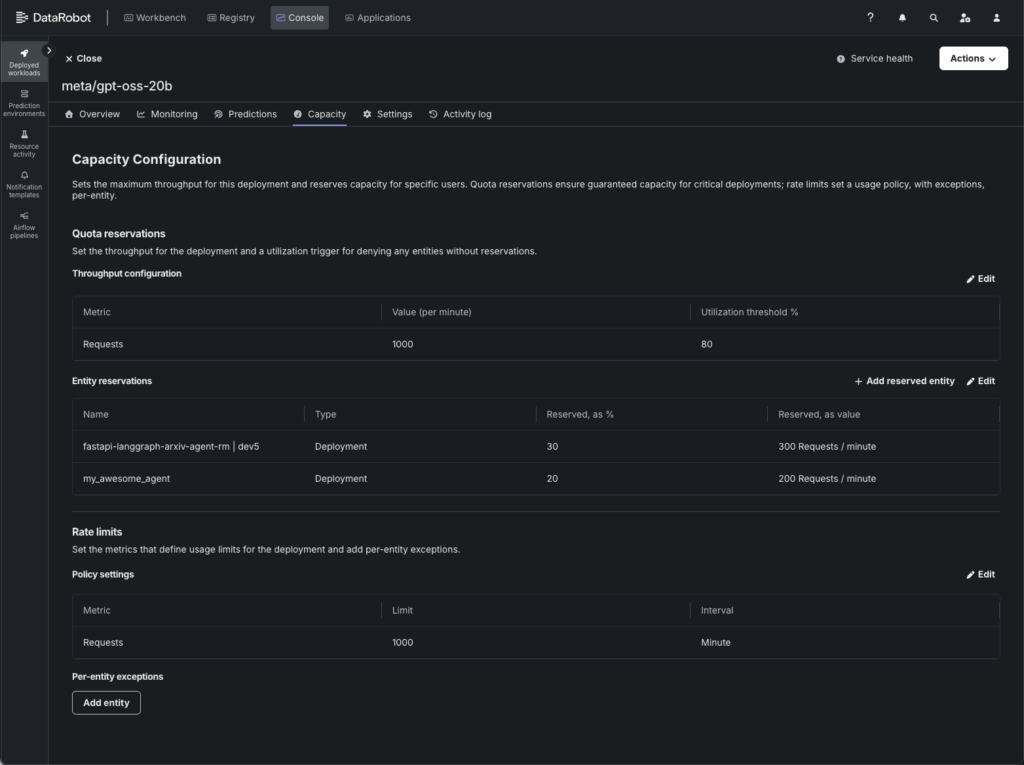

Example configuration

Setting	Value
Model	gpt-oss-20b (NVIDIA NIM)
Capacity	1000 RPM
Utilization Threshold –	80% (enforcement starts at 800 RPM)

Consumer	Type	Reserved Capacity –	Effective Guarantee
Production Agent A	Deployment	30%	300 RPM
Production Agent B	Deployment	20%	200 RPM
Production Agent C	Deployment	30%	300 RPM
Dev User (unreserved) –	User	–	None — shares the 20% unreserved pool

This left a 20% unreserved pool (200 RPM) for the dev user and any overflow.

Example load profile

We ran six escalating scenarios over 17 minutes to observe behaviour at different saturation levels:

Scenario	What Happens	Combined Load
Normal traffic	All four consumers at moderate, throttled rates	~600 RPM (below utilization threshold)
Slight overload	All four consumers ramp up to just over capacity	~1,200 RPM (1.2× capacity)
Heavy overload	All four consumers fire as fast as possible	~7,200 RPM (7× capacity)
Extreme overload	Maximum concurrent workers per consumer	~12,000 RPM (12× capacity)
Late joiner	Three agents flood first, dev user joins 60s later	~9,000 RPM
Reserved -only	Three agents compete, dev user silent	~7,200 RPM

When to use Rate Limiting alone

Rate limiting by itself is the right choice when:

All consumers are equally important. If no team’s traffic is more critical than another’s, there’s no need for reservations. Equal competition under saturation is fair enough.
You just need to protect the GPU. Your primary concern is that a spike in traffic doesn’t degrade model latency or cause OOM errors. You want a safety valve, not a traffic policy.
You have a single consumer. If there’s only one application hitting the deployment, reservations are meaningless — there’s no one to reserve against.

What the example showed

During the normal traffic scenario (~600 RPM combined, well below the 800 RPM utilization threshold), the rate limiter was invisible and all four consumers achieved 100% success rates with zero rejected requests.

Scenario	Combined RPM	Success Rate	429s
Normal traffic	~600	100%	0

Size your reservations based on the absolute minimum throughput each consumer requires during peak contention. This is by design, so you’re not penalizing normal traffic.

And it protects the model even under extreme abuse. During the extreme overload scenario (20,000+ RPM against 1,000 RPM capacity, which is a a 20× overload), the rate limiter rejected 95% of requests. But the model itself stayed perfectly healthy:

NIM Metric	Under 20× Overload
GPU Utilization	91–95% (stable)
E2E Latency	1.25s → 2.09s (brief spike, then stable)
Time to First Token	35ms (unchanged)
Inter-Token Latency	18ms (unchanged)
KV Cache	<3% (not stressed)

The rate limiter acted as a firewall between chaotic client demand and stable model inference. Without it, those 20,000 requests per minute would have queued up inside the NIM, latency would have ballooned, and the model would have effectively become unusable for everyone.

Takeaway: If your only goal is “don’t let traffic spikes kill the model,” rate limiting alone is sufficient and zero-config beyond setting the capacity number.

When to add Quota Reservations

Quota reservations become essential when:

Some consumers are more important than others. Your fraud detection system can’t afford to be starved out by a batch analytics job. Your production agent needs guaranteed throughput that a developer’s test harness can’t steal.
You have a multi-tenant deployment. Multiple teams, applications, or downstream deployments share the same model. Without reservations, the loudest consumer wins.
You want predictable SLAs. If you’ve promised a team “your application will get at least 300 RPM,” reservations are how you enforce that promise at the infrastructure level.
You have a mix of interactive and batch workloads. Batch jobs are bursty and will happily consume all available capacity. Reservations ensure interactive workloads still get their share during batch spikes.

How to size reservations

Size your reservations based on the absolute minimum throughput each consumer requires during peak contention.

Rules of thumb:

Don’t reserve 100%. Leave an unreserved pool (10–20%) for ad-hoc traffic, new consumers, and overflow. If you reserve everything, any new application gets zero throughput until you reconfigure.
Size reservations to minimum needs, not peak needs. Reservations guarantee a floor, not a ceiling. An entity with 30% reserved can still use more than 30% when capacity is available.
Match reservation size to business criticality, not team size. Your fraud detection system might have fewer requests than your analytics pipeline, but it needs guaranteed access more.

In our example, three production agents received 30%/20%/30% reservations, leaving a 20% unreserved pool for the dev user. This meant the dev user could still use the deployment — they just wouldn’t get guaranteed access during contention.

Do reservations work under real load?

At slight overload (1.2× capacity): The system degrades gracefully

During the slight overload scenario (~1,200 RPM against 1,000 RPM capacity), all four consumers achieved 100% success — the token bucket’s burst capacity absorbed the slight overage. This is the “graceful degradation” zone where reservations aren’t yet needed, but the system is proving it can handle bursts.

At heavy-to-extreme overload (7–12× capacity): reservations maintain a guaranteed floor

When all four consumers fired as fast as possible (7,000–12,000 RPM against a 1,000 RPM capacity), the system was overwhelmed. Here’s what each consumer experienced across the full test:

Consumer	Reserved	Success Rate	Successful Requests
Production Agent A	30%	29.0%	4,172
Production Agent B	20%	30.2%	4,332
Production Agent C	30%	28.9%	4,176
Dev User (unreserved)	–	28.9%	2,828

Why the success rates look similar: At 12× overload, even a 300 RPM reservation is only ~2.5% of what each consumer is attempting to send (~3,000 RPM per consumer vs. a 300 RPM guarantee). The reservation works by ensuring each consumer receives its guaranteed 200–300 RPM. However, because 97% of total traffic is rejected during extreme overloads, the relative percentage differences compress.

The more revealing metric is absolute throughput. Reserved consumers completed 4,172–4,332 successful requests. The unreserved dev user completed 2,828 — about 34% fewer. Even accounting for the dev user’s shorter active time, reserved consumers consistently got more requests through during shared scenarios.

At saturation with a late joiner: reservations protect incumbents

In the late joiner scenario, the three production agents were already flooding the system when the dev user joined 60 seconds later. With all reserved capacity spoken for, the dev user was confined to the 20% unreserved pool (~200 RPM). The production agents continued drawing from their guaranteed buckets, unaffected by the new arrival.

This is the scenario that matters most in production. A batch job kicks off, or a new application goes live, and suddenly there’s more demand than supply. Without reservations, the new load pushes everyone’s throughput down equally. With reservations, your critical consumers are shielded.

Reserved consumers compete fairly among themselves

In the reserved-only scenario, the dev user went silent and only the three production agents competed. Their success rates were nearly identical (28.9%–30.2%) — the system divided throughput proportionally across their reservations.

What the server sees: OTEL metrics tell the story

Client-side metrics (success rates, 429 counts) tell you what your consumers experienced. Server-side OTEL metrics tell you what the platform experienced. Here’s what our example deployment looked like from the inside.

The rate limiter protects model health

During peak load (20,596 requests/minute hitting the endpoint), the NIM was serving only the ~1,000 RPM that the rate limiter let through:

What the endpoint saw	What the NIM saw
20,596 requests/min	~1,000 requests/min (served)
19,603 rate-limited/min	18–22 concurrent requests
—	1.25s E2E latency (stable)
—	91–95% GPU utilization (healthy)

Without rate limiting, those 20,000 RPM would have queued inside the NIM. The GPU wouldn’t have gotten more productive — it’s already at 91–95% — but latency would have spiraled as requests stacked up. Instead, the rate limiter rejected excess requests immediately (at 429-response speeds, not inference speeds), keeping the model responsive for the traffic it did accept.

Server-Side Request Volume & Rate Limiting (OTEL)

Token throughput follows successful requests

Peak token throughput was ~199,350 tokens/min (total), with ~115,939 input and ~83,411 output. These numbers track directly with the rate limiter’s allowed throughput — not with the attempted request volume. Another way of seeing that the rate limiter is correctly shaping traffic.

Deciding between Rate Limits and Quota Reservations

Use this flowchart to decide what to configure:

Step 1: Do you have a shared deployment with multiple consumers?

No → Rate limiting alone is sufficient. Set capacity to protect the GPU and move on.
Yes → Continue to Step 2.

Step 2: Are all consumers equally important?

Yes → Rate limiting alone may be enough. Under saturation, all consumers compete equally — first come, first served. If that’s acceptable, stop here.
No → Continue to Step 3.

Step 3: Do any consumers need guaranteed minimum throughput?

Yes → Add quota reservations. Size them to the minimum RPM each critical consumer needs during peak contention.
No, but some consumers need to be deprioritized → Use per-entity exceptions instead of reservations. Cap the noisy neighbors rather than guaranteeing the critical ones.

Step 4: Configure the unreserved pool.

Don’t reserve 100% of capacity. Leave 10–20% unreserved for ad-hoc traffic, overflow, and new applications that haven’t been assigned reservations yet.

Practical configuration tips

Start with rate limiting only. Monitor your deployment’s traffic patterns for a week. Look at peak RPM, who’s sending what, and whether anyone is consistently overconsuming. Then add reservations where the data tells you they’re needed.

Set utilization threshold at 70–80%. This gives the token bucket burst room to absorb short spikes without triggering rate limiting on every minor fluctuation. In our example, we used 80% and the system handled 1.2× capacity gracefully before enforcement kicked in.

Monitor with OTEL metrics. After configuring rate limiting, check these server-side metrics to confirm things are working:

deployment.requests vs deployment.requests.rate_limited — are you rejecting the right amount?
nvidia_gpu_utilization — is the model still saturated or did rate limiting create headroom?
nvidia_vllm:e2e_request_latency_seconds — is latency stable under load?
deployment.concurrent_requests — are requests queuing up or flowing smoothly?

Reservation sizing formula:

Reserved RPM = Capacity × Reserved %

Example: 1000 RPM × 30% = 300 RPM guaranteed

Don’t confuse this with a rate limit. A 30% reservation means “you’ll always get at least 300 RPM, even when the system is saturated.” The entity can still use more when capacity is available.

Summary

Feature	Protects Against	Use When
Rate Limiting	GPU overload, runaway consumers, latency spikes	Always — it’s your safety net
Quota Reservations	Priority starvation, noisy neighbors, SLA violations	Multiple consumers with different importance levels
Per-entity exceptions	A specific consumer overconsuming	You want to cap a noisy neighbor without reserving capacity for others
