Catcher Pitch Framing using Machine Learning: Part One

As sports leagues continue to add additional real-time player tracking technologies (e.g. Statcast, NBA player tracking, NFL Next Gen Stats), the amount of data available to analyze and understand (and potentially predict) player performance is growing at an incredible rate. Unfortunately, it is very difficult for us to make sense of this volume of data. The only way to get value out of this much data is through computational methods. Most casual sports fans historically haven’t had access to these techniques. However, with the development of automated machine learning tools, these methods are being opened up to all fans. We still don’t have access to most of this data but, some data on baseball (PITCHf/x) has been available for a while, allowing us to explore the impact of pitching and hitting.

One of the first places this data was used was for pitch framing — the impact a catcher has on the calling of strikes and balls. Pitch framing has been well explored with two common approaches. First, we can simply specify the strike zone and look at the balls called inside the strike zone, and strikes called outside the zone (see StatCorner for this approach). Second, we can try to determine the probability that a pitch will be called a strike. This approach can be done either by looking at portions of the strike zone and calculating the percent of pitches in that zone that were called strikes (see Sons of Sam Horn), or by building a model that uses the PITCHf/x data to predict the probability that a pitch will be a strike (see Baseball Prospectus).

In this post, we will explore both approaches using a machine learning model. Starting with the basic PITCHf/x data for 2016 —  where the pitch was released, how fast it was moving, how much it broke, where it crossed home plate, and the handedness of both the pitcher and hitter — we will build a logistic regression model, and use it to explore the data for 2017’s called pitches, in order to evaluate catchers for the 2017 season.

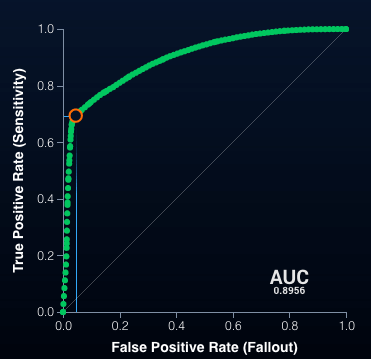

Using DataRobot, we built our logistic regression model and got good performance (an AUC of 0.8956 with a correspondingly good ROC curve):

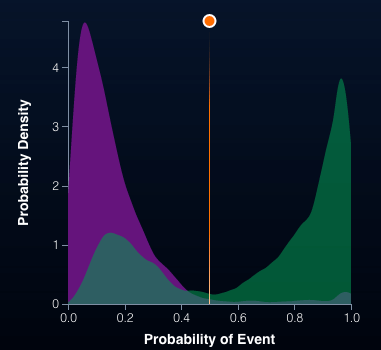

The output of this model is a prediction of the probability that this particular pitch will be called a strike, and we can look at plots of the distribution of predictions for both those pitches actually called strikes (green) and those called balls (purple):

This plot shows some issues with the strike predictions that we will discuss in a future blog post, but the model seems to be working well. We can use the model to make predictions for all called pitches in 2017. Then, we can use those predictions to calculate each catcher’s pitch framing abilities in two ways – by classifying each pitch as a strike or a ball or by using the probability of the pitch being called a strike directlyin each of the two ways above.

We’ve also seen how using the PITCHf/x data allows us to explore the impact a catcher has on a strike call without having to rely on someone else’s model.

First, we translate the probability of a pitch to be a strike to a prediction of either a strike or a ball. We do this by classifying all pitches with a prediction greater than 0.5 as strikes, with  the rest being balls.

Next, we follow the approach detailed in this StatCorner page to get the best and worst performers at pitch framing. We first calculate the number of extra strikes as the number of actual strikes the catcher caught with a predicted probability of being a strike at less than 0.5, and then subtract the number of balls the catcher caught that had a predicted probability of being a strike greater than 0.5. We only consider those catchers that had at least 1000 pitches called by the umpire.

This gives us our top 10 catchers by number of extra strikes over an average catcher:

Similarly, we see the worst 10 catchers in this category:

Subsequently, if we take the straight predicted probability of a strike, we can calculate the number of expected strikes. The difference between the number of expected strikes and the total number of strikes will give us the number of extra strikes above what we expected the catcher to receive.

We can then look at the top 10 catchers using this method:

And, the worst 10 catchers:

Reassuringly, we see a very similar list of catchers between these two approaches. We’ve also seen how using the PITCHf/x data allows us to explore the impact a catcher has on a strike call without having to rely on someone else’s model. This lets us not only understand the framing ability, but the underlying model as well. Finally, using these techniques and other data sources (fielding or hitting for example), we could evaluate other areas of baseball performance.

In our next blog, we are going to discuss one problem with this approach of using a logistic regression, and how we can use modern machine learning techniques to resolve it.
